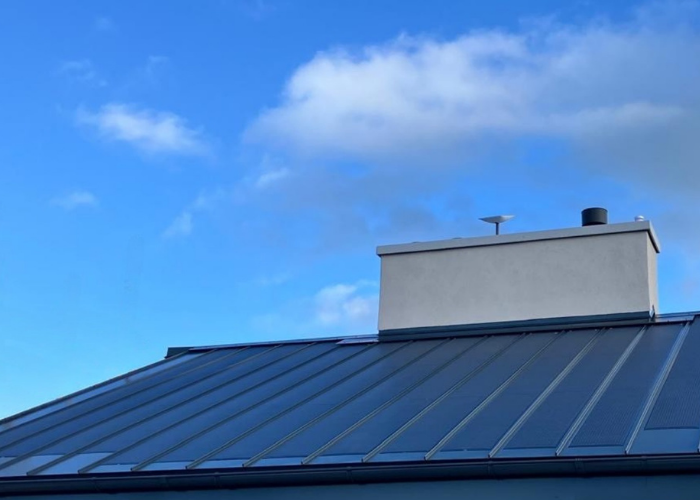

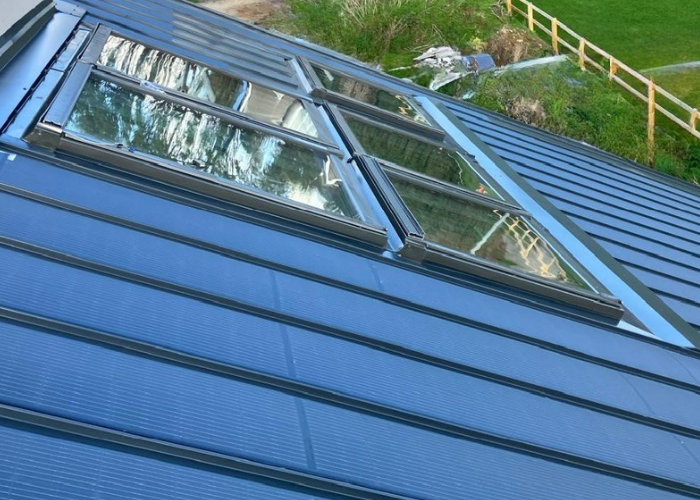

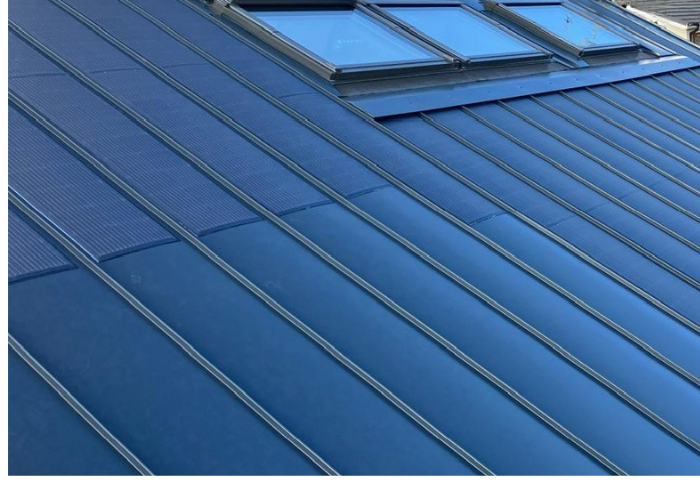

EasySeam Solar System
)
)
)
)
)
)
EasySeam Standing Seam Roof System and high-efficiency integrated solar PV laminate modules combine seamlessly to create EasySeam Solar System, offering a renewable energy solution that enhances sustainability whilst complementing the building’s design.
Key features
- Lightweight Solar PV laminate modules factory bonded to EasySeam Flat Profile Roof panels.
- Each panel electrically tested before leaving Vertix Systems manufacturing site.
- Solar PV laminate in a range of standard module lengths to meet the total KW output required for the project.
- Fully installed weight of less than 11kg per square metre.
- Solar PV laminate module sits discretely within the pan of the EasySeam Roof panel.
- Uses multiple bypass diode design to protect the solar modules and ensure they can work effectively in low light conditions and shaded areas.
- Uses MCS certified Solar PV laminate capable of achieving a minimum output of 146W/M2.
- Cell efficiency of up to 24%, comparable with mounted crystalline PV panels.
- Solar PV laminate comes with a 10 year product warranty and 25 performance warranty. Guarantees minimum power output performance of 90% for first 10 years and 80% for following 15 years.
- Available with 25 year Confidex® Home Guarantee from Tata Steel, covering appearance and durability of Colorcoat Prisma®pre-finished steel material used in System.
- EasySeam Roof panels and Solar PV laminate are made in the UK.
- Suitable for roof pitches between 5 and 45 degrees.
)
)
